خط انتاجي كامل انتاج صفائح الزيت. السعر مع النصب والتدريب في العراق
 |  |
 |  |
|  |
| 1 complete second hand production line for rectangular cans |
| year of manufacture: 1995 |
| original supplier: Sabatier |
| line speed: 60-70 cans per Minute |
| volume of operation before |
| line was disassembled: approx. 1 Million Cans |
| installed tooling on end line:105,5*168,8mm |
| possible can height:160-350mm |
| can size (with installed
tools): 1 US Gallon |
| The line consists of the following: |
| DOUBLE-SLITTER UNIT |
| 1 sheet feeder KG 4000 |
| 1 CEPAK double-slitter |
| 8 pairs of carbide cutters knife holder and vulcolan rings |
| 16 pairs of driving rollers |
| 1 mechanical strip collector (without hydraulic table) |
| 1 cutter grinding device |
| 1 squaring control plate clock / comarator |
| ASSEMBLY LINE |

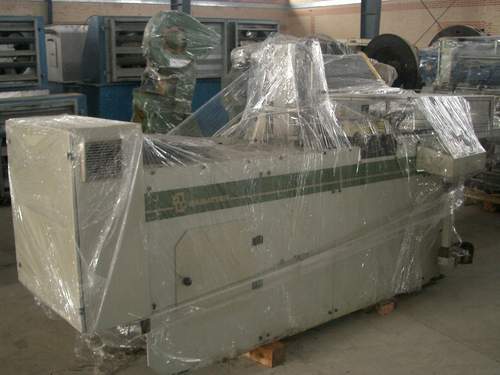

| 1 body welder type SMAC 120 t, complete with tool, with exit conveyor |
| 1 water cooling unit |
| 1 in-line Sabatier stretch former |
| 1 hydraulic unit for stretch former |
| 1 connecting arm to the welder |
| 1 standard expanding tool (one direction) |
| 1 body erector |
| 1 inlet conveyor with synchronization |

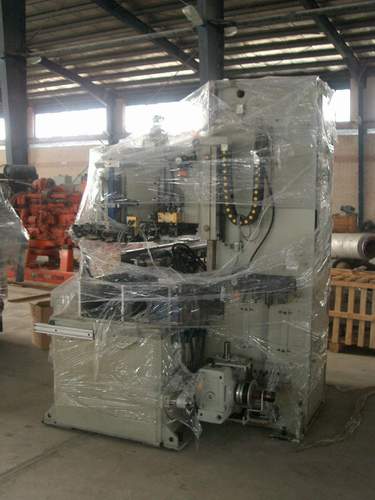

| 1 automatic Sabatier seaming machine for irregular shape can, type KS - bottom side |
| 1 Sabatier flanging extension (for seamer type KS) |
| 1 bottom feeder coupled to and driven by the seamer |
| 1 flanging tool |
| 1 seaming tooling including |
| 1 chuck, 1 set of wheels, and table accessories |
| 1 turn-over conveyor (180°) |

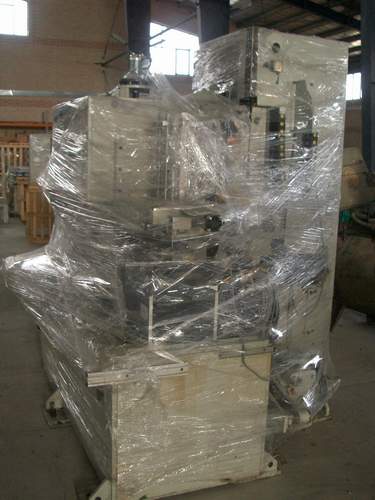

| 1 automatic Sabatier seaming machine for irregular shape can, type KS - top side |
| 1 Sabatier flanging extension (for seamer type KS) |
| 1 top feeder coupled to and driven by the seamer |
| 1 flanging tool |
| 1 seaming tooling including |
| 1 chuck, 1 set of wheels, and table accessories |
| 1 statistic tester (1 head) |
| 1 line automation, connecting conveyors, interlocking of the machine |
| BOTTOM MANUFACTURING UNIT |
| 1 strip feeder |
| 1 Manzoni press 40 tons |
| 1 working table |
| 1 pressure device |
| 1 piece ejector command (with adjustable cam) |
| 1 mechanical kicker (driven by cam) |
| 1 wheel crank adjustable on shaft (for feeder drive) |
| 1 safety device against overload SR.8 |
| 1 separate cloolrical cabinet (with integrated safety against overload) |
| 1 piecing and drawing tool (with guiding by means of columns) |
| 1 spare cutting for the tool (incl. 1 cutting ring and 1 punch) |
| 1 curling-lining machine for oblong ends |
| 1 connecting conveyor from the exit of the press to the inlet of regulating magazine |
| 1 motorization of the machine by frequency converter speed variator |
| 1 curling tooling, first and second operation |
| 1 housing and 1 lining tooling with compound tank |
| 1 vertical drying oven (electric) |

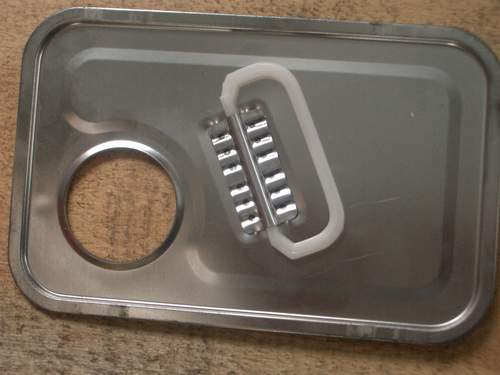

| ADD - ON FOR SPECIAL TOP PRODUCTION |

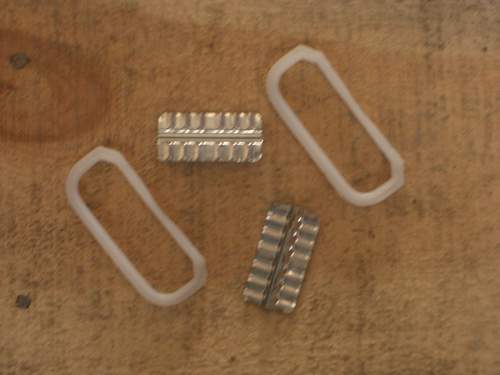

| 1 press set 16 T: chinese press for punching the hole into the special top end |
| 1 press set 6.3 T: chinese press for making the tab for handles |
| 5 sets spot welders, for welding the
handle-tab onto the top end (made in China) Fore More Information Please contact Mr. König Tel 00491717282304 or E-Mail This email address is being protected from spambots. You need JavaScript enabled to view it. |
